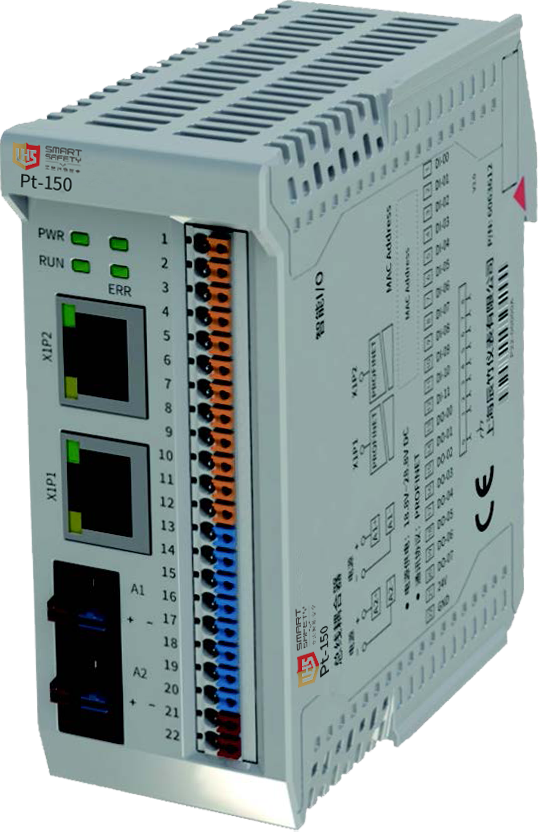

Profinet distributed bus IO Pt-150

? Product integrated power supply, 12-way switch input and 8-way switch output.

? Can dock with standard third-party Profinet master station equipment.

? Application of dual-port support ring network

? Additional 12 I/O cards can be expanded.

? Spring terminal connection

? The terminal is detachable.

? The expansion I/O card supports hot plug function.

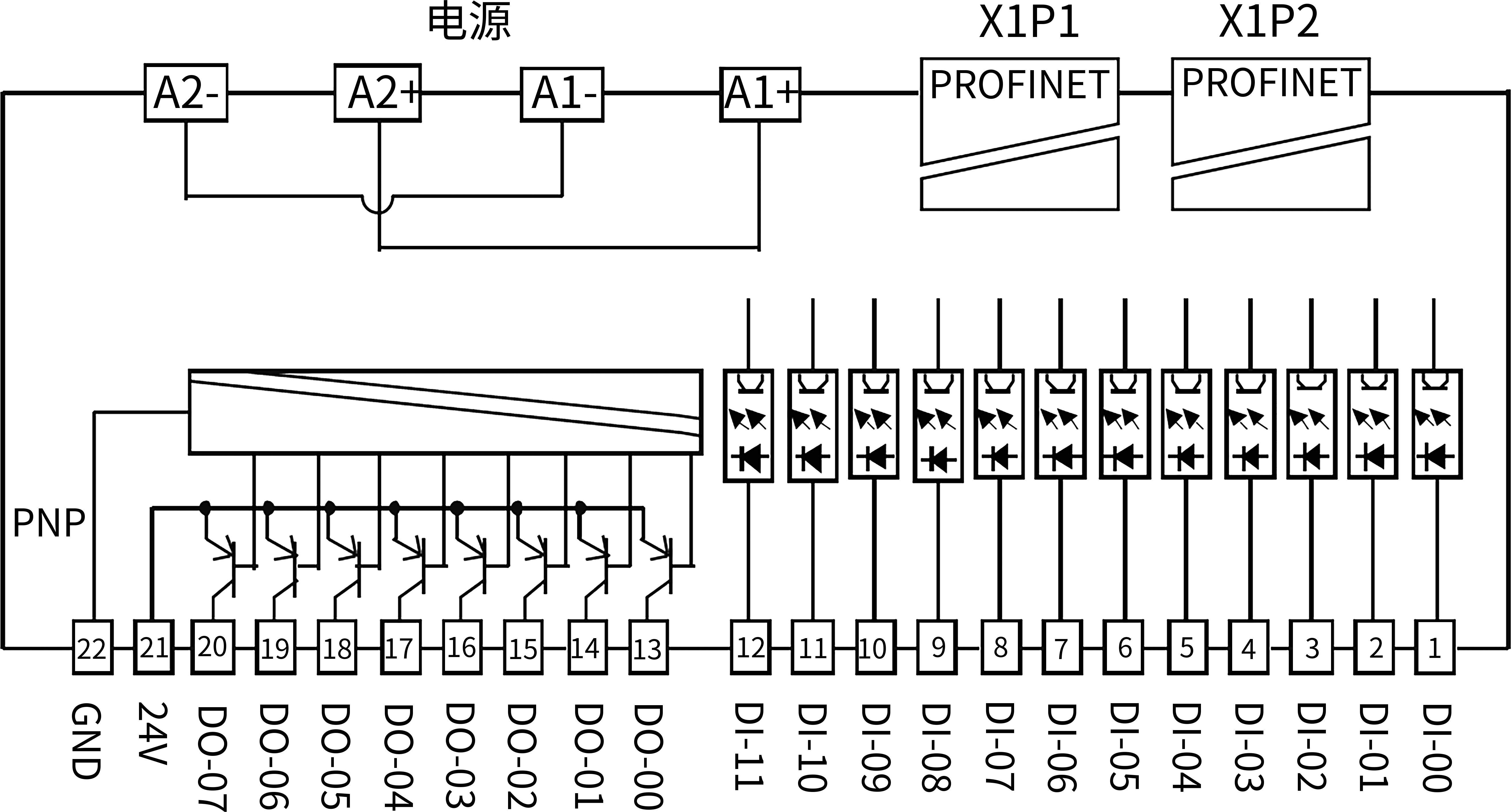

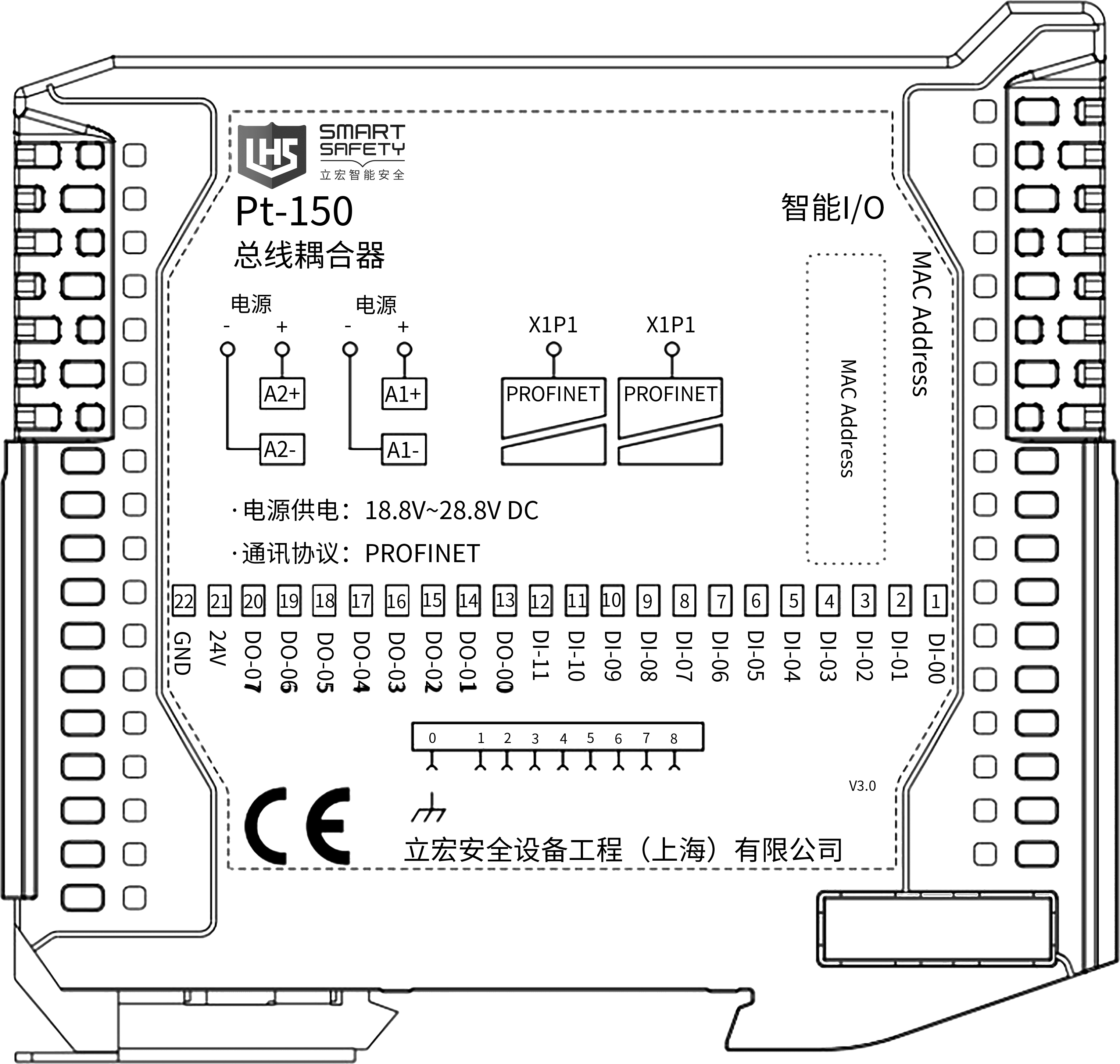

▊	technical parameter

Basic parameter
standard	IEC 61131-2 GB/T 15969.2-2008
Network port impulse voltage	1500V (1.2/50 US)
Insulation strength of mesh opening	1000V AC, 50Hz, 1min
EMS	refer to GTB 18268.1 (IEC 61326-1)
Operating ambient temperature	-Test range from 20℃ to+60℃:-30℃ to+70℃
storage temperature	-40℃~+85℃
Using ambient humidity	10~95%，Non-condensation

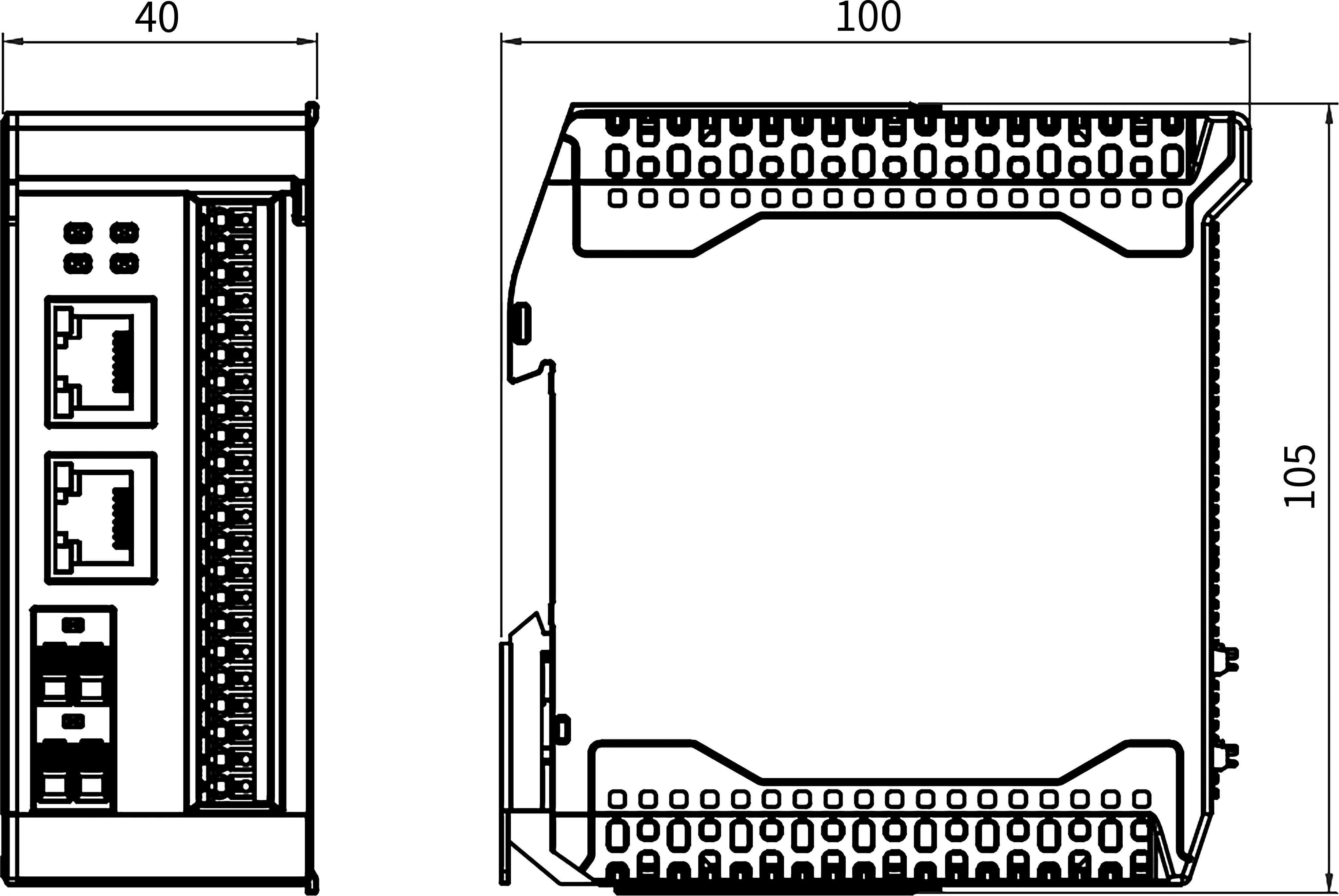

Overall dimension (W/H/D)	105mm×100mm×40mm
Number of ports	2
type	Ethernet (ProfiNet protocol)
Data transmission rate	10/100Mbit/s

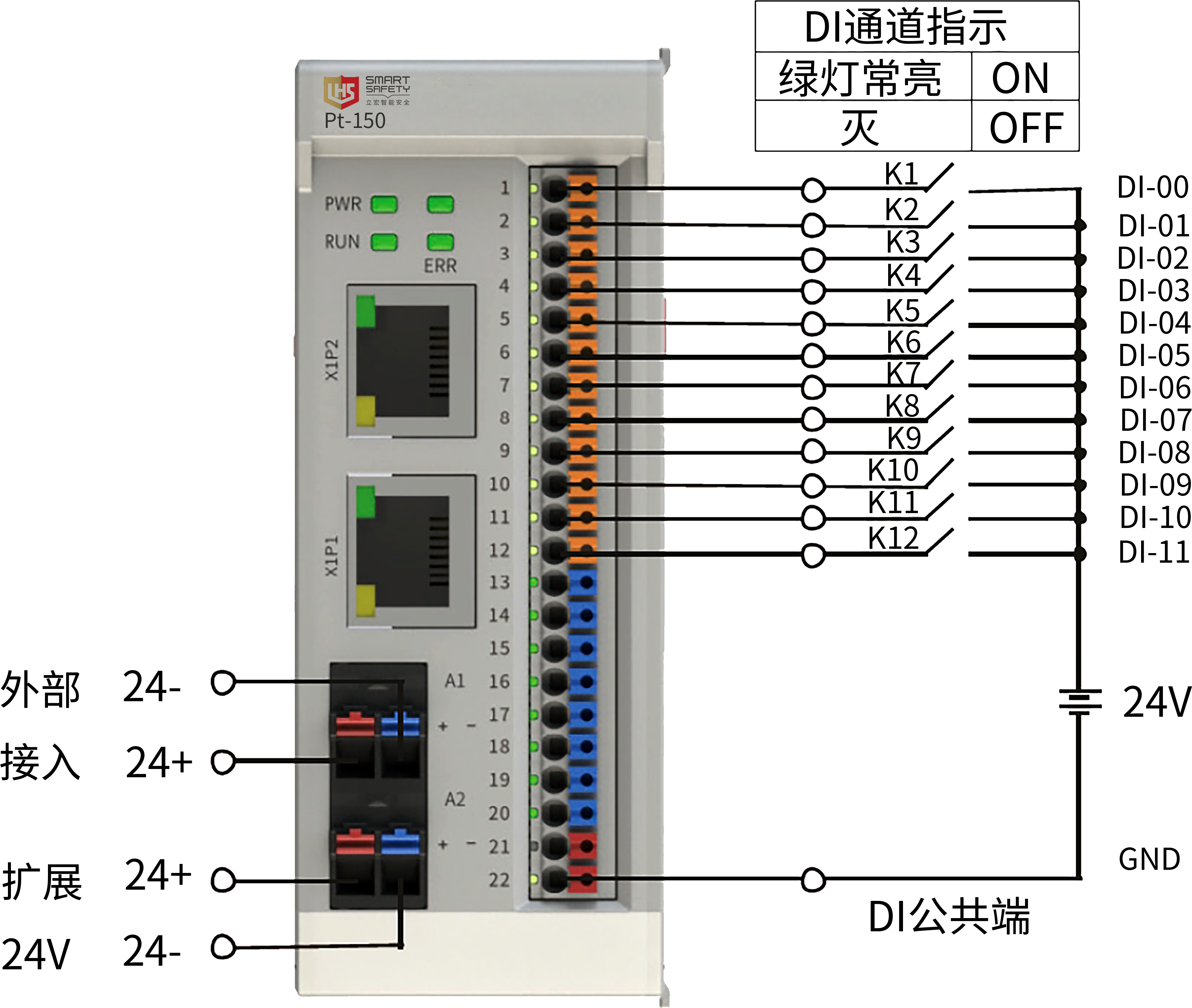

DI technical parameters
Output type	Leakage pattern TYPE1、TYPE3
port number	12
input voltage	24VDC
Logic 1 signal (minimum)	2mA, 11VD
Logic 0 signal (max)	1.5mA, 5VDC
Cable length	500 meters (shielded); 300 meters (Unshielded)
Input filtering time	無(wú)、10ms、30ms、100ms (User-configurable）
Input delay	<1ms (Filter time setting None)

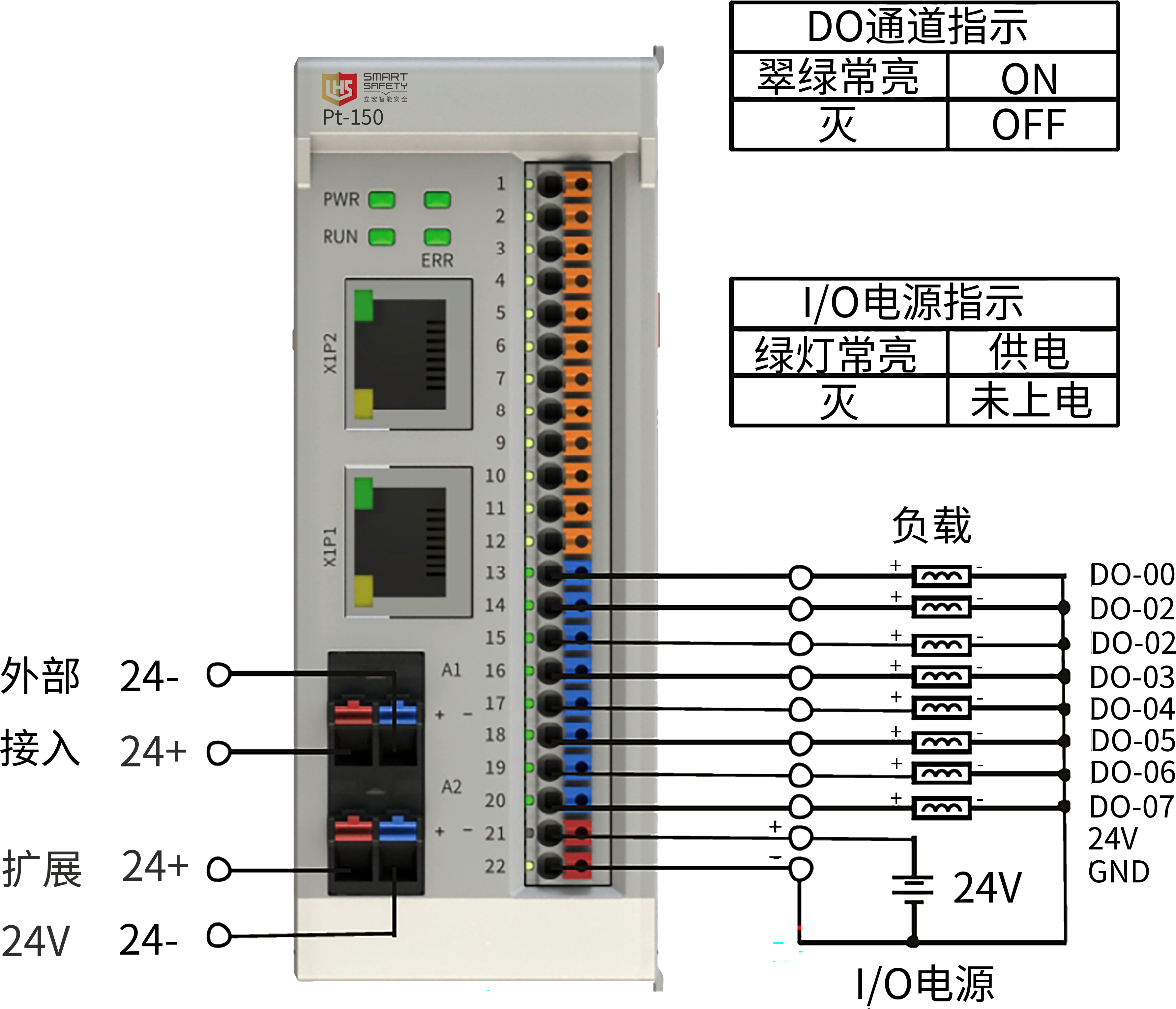

DO technical parameter
Output type	Transistor (PNP, 24V source output)
port number	8
Output current per channel	<500mA, With short circuit protection
Cable length	500 meters (shielded); 150m (unshielded）
Switching delay	The maximum length from disconnection to connection is 100us. The longest disconnection of the connecting channel is 200us.
