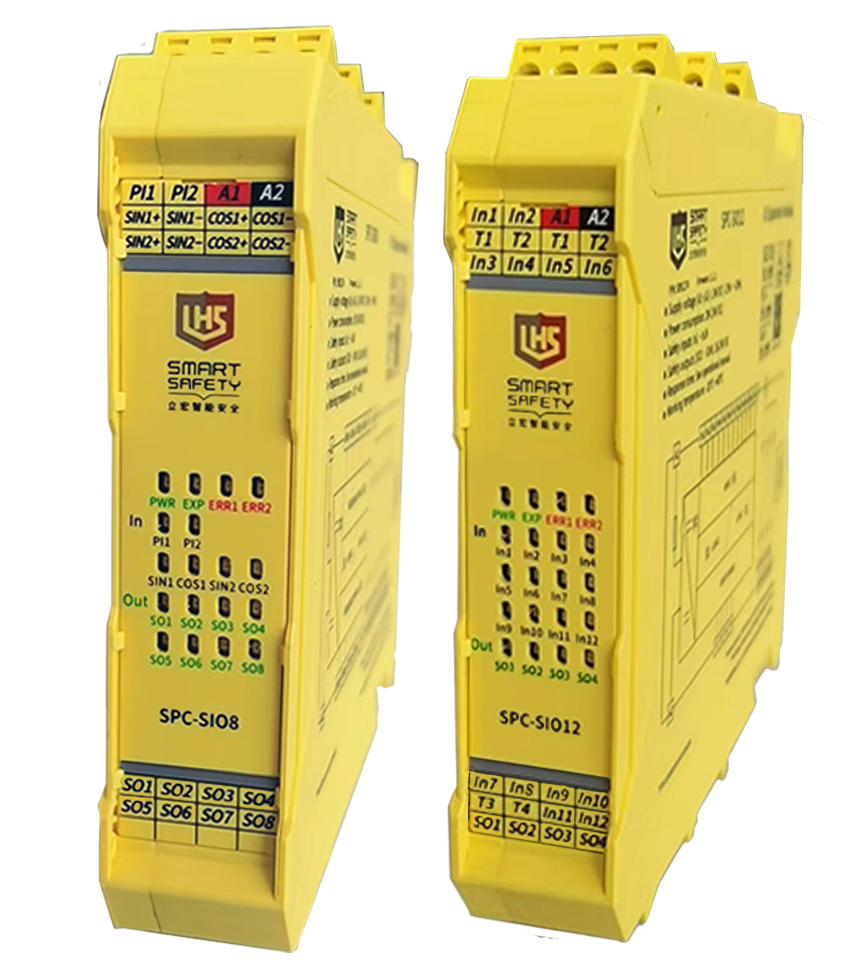

▊Selection methods of safety controllers

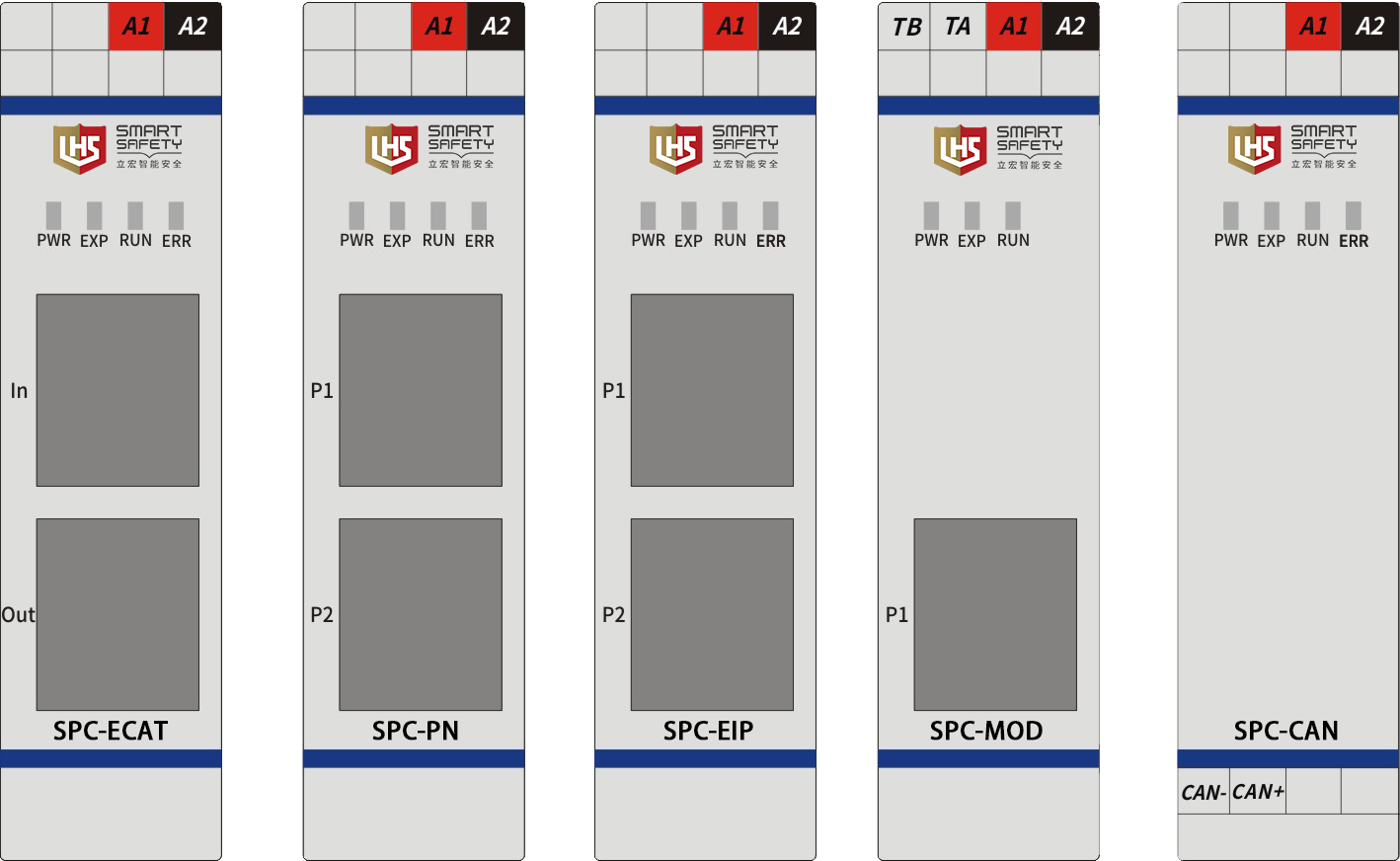

Pls select the appropriate GC series products according to their intended use, following these steps. | ||
 |  |  |
| Selection of main controller(required) | Selection of expansion unit(option) | Selection of bus gateway(required) |
|  |  |

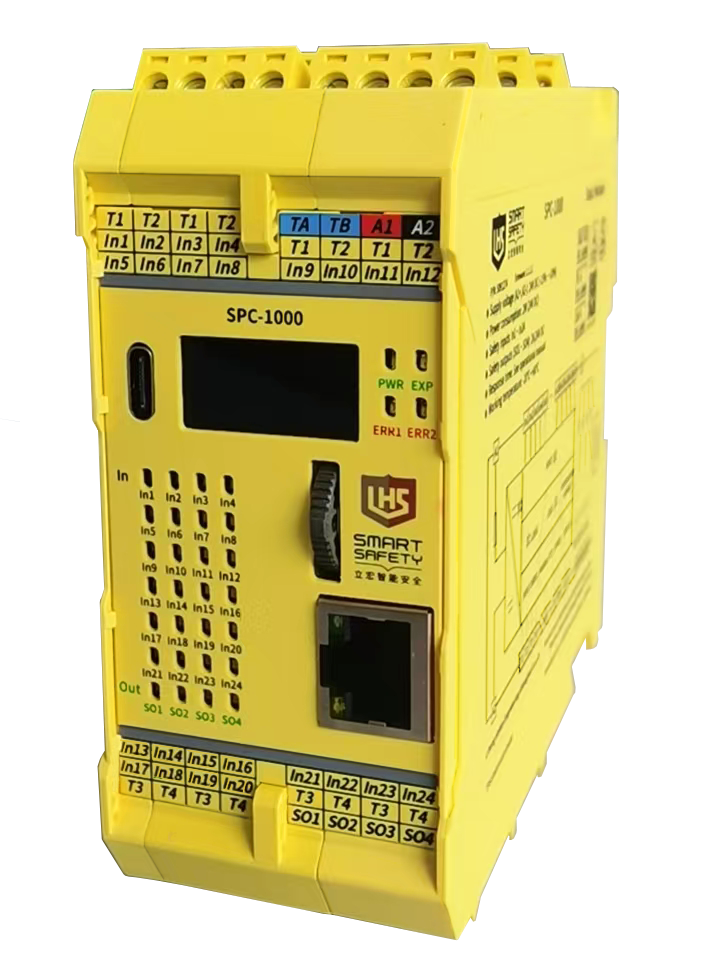

SPC-1000 | SPC-SIO8 SPC-SIO12 | SPC-WG |

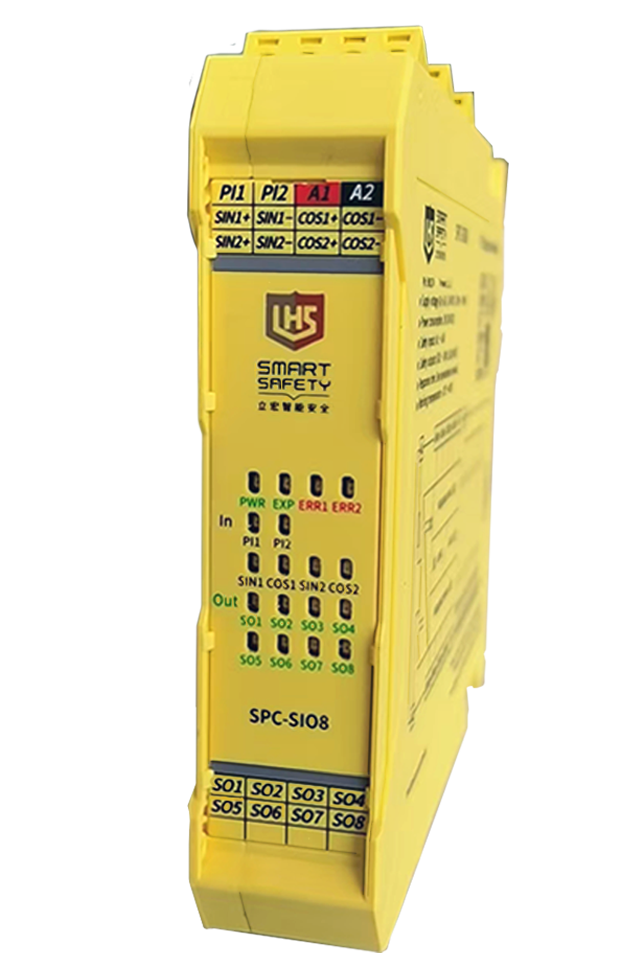

| ▊ | SPC-SIO8 Safety expansion module |
| · It is a safety expansion module · It supports a maximum of 2 channels of TTL type/sine-cosine type encoder singal input and 8 channels of safety output. · It can be used with the safety control modules SPC1000 to set safety control logic,meeting various on-site application requirements. |
| ▊ | Model specification |
Product selection | Power supply | Safety input | Input channel | Output channel |
SPC-SIO8 | 24V DC | TTL type/sine-cosine type encoder | 2 | 8 |
Instrucions | TTL type/sine-cosine type encoder | |||
| ▊ | Safety performance |
Performance grade（PL）：PLe Security category（Cat.）：Cat.4 Task time（TM）：20 years Diagnostic coverage rate（DC/DCavg）：99% Safety integrity level（SIL）：SIL3 Hardware fault tolerance（HFT）：1 Safety failure score（SFF）：99% Dangerous failure probability（PFHd）：1.86E-9/h Stop level（Stop Category）：0/1 | Compliant with standard EN ISO13849 Compliant with standard EN ISO13849 Compliant with standard EN ISO13849 Compliant with standard EN ISO13849 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard EN 60204-1 |

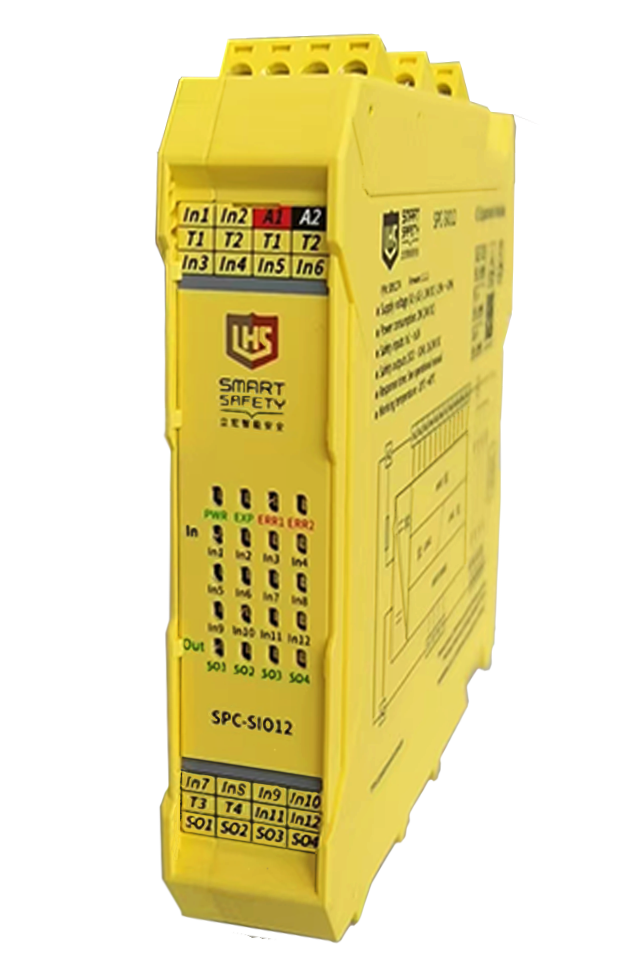

| ▊ | SPC-SIO12 Safety expansion module |
| · It is a safety expansion module · Supports input from various switch-type safety components(such as emergency stop buttons,safety doors,two-hand buttons,ect.) · Max.supports 12 channels of safety component input and 4 channels of safety output. · Can be used with the safety control module SPC-1000 to set safety control logic, meeting various on-site application requirements. |
| ▊ | Model specification |
Product selection | Power supply | safety input | Input channel | Output channel |
SPC-SI12 | 24V DC | Emergency stop buttons，safety doors，two-hand buttons，Safety light curtain | 12 | 4 |
Instructions | Emergency stop buttons、Safety doors、PNP type safety light curtain | |||
| ▊ | Safety performance |
Performance level（PL）：PLe Security category（Cat.）：Cat.4 Task time（TM）：20 years Diagnostic coverage rate（DC/DCavg）：99% Safety integrity level（SIL）：SIL3 Hardware fault tolerance（HFT）：1 Safety failure score（SFF）：99% Dangerous failure probability（PFHd）：1.86E-9/h Stop level（Stop Category）：0/1 | Compliant with standard EN ISO13849 Compliant with standard EN ISO13849 Compliant with standard EN ISO13849 Compliant with standard ISO13849 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard IEC61508,IEC62061 Compliant with standard EN 60204-1 |
| ▊ | Technical parameter |
| Model | SPC-SIO8 |
Power supply characteristics | |
Supply voltage | 24V DC |
Voltage range | 20～30V DC |
Current loss | ≤90mA (24V DC) |
Input characteristics | |
Input channel | 2 |
Input current | ≤10mA (24V DC) |
Conductor resistance | ≤15Ω |
Input device | TTL type/sine-cosine type encoder |
Input frequency | 0.01Hz~250kHz |
Output characteristics | |
Output channel | 8 |
Output type | PNP |
Switching capacity | 1A/24V DC |
Contact fuse protection | 3A fast，2A slow |
Short-circuit protection | available |
Time characteristics | |
Suction buffer time | ≤100ms |
≤30ms | |
Release buffer time | |
Power failure recovery time | ≤1000ms |
Environmental characteristics | |
Electromagnetic compatibility | Compliant with EN 61326-3-1 |
Frequency of oscillation | 10Hz～55Hz |
Vibration amplitude | 0.35mm |
Operating temporature | -20℃~+60℃ |
Storage tempporature | -40℃~+85℃ |
Relative humidity | 10%~90% |
Insulation characteristics | |
Overvoltage grade | Ⅲ |
Class of pollution | 2 |
Protection grades | IP20 |
Altitude | ≤2000m |
Rated insulation voltage | 250V AC |
Rated impulse voltage | 4000V(1.2/50us)，Basic safety isolation |
Insulation strength | 1500V AC, 1min |
Electrical clearance and creepage distance | Compliant with EN 60947-1 |
▊Technical parameters
Model | SPC-SIO12 |
Power supply characteristics | |
Supply voltage | 24V DC |
Voltage range | 20~30V DC |
Current loss | ≤90mA (24V DC) |
Input charateristics | |
Input channel | 12 |
Input current | ≤10mA (24V DC) |
Conductor resistance | ≤15Ω |
Input device | Switch-type safety components，emergency stop buttons，safety doors, two-hand buttons，safety light curtain,etc. |
Output characteristics | |
Output channel | 4 |
Output type | PNP |
Switching capacity | 2A/24V DC |
Contact fuse protection | 5A fast，3A slow |
Short-circuit protection | available |
Time characteristics | |
Suction buffer time | ≤100ms |
≤30ms | |
Release buffer time | |
Emergency stop failure recovery time | ≤30ms |
≤1000ms | |
Power failure recovery time | |
Environmental characteristics | |
Electromagnetic compatibility | Compliant with EN 61326-3-1 |
Frequency of oscillation | 10Hz～55Hz |
Vibration amplitude | 0.35mm |
Operation temperature | -20℃~+60℃ |
Storage temperature | -40℃~+85℃ |
Relative humidity | 10%~90% |
Insulation chacteristics | |
Overvoltage grade | Ⅲ |
Class of pollution | 2 |
Protection grades | IP20 |
Altitude | ≤2000m |
Raged insulation voltage | 250V AC |
Rated impulse voltage | 4000V(1.2/50us)，Basic safety isolation |
Insulation strength | 1500V AC, 1min |
Electrical clearance and creepage distance | Compliant EN IEC 60947-1 |
▊SPC-SIO8 function block diagram、typical application and outline dimension diagram
| Function block diagram | Typical application | Outline dimension diagram |
 |  |
|
▊SPC-SIO12 function block diagram、typical application and outline dimension diagram
| Function block diagram | Typical application | Outline dimension diagram |
 |  |
|
▊SPC-SIO8 Wiring diagram
Power Supply |  | |
Input |   | |
Output |  |  |
▊SPC-SIO12 Wiring diagram
Power supply |  | ||
Input |   |  |  |
 |  | ||
 |  | ||
Reset |  |  | |
Feedack |  |  | |
Output |  |  |
